Air grilles

Product Finder

layer

ASL

Ventilation grille with droplet shaped blades

  • Nominal sizes 225 × 125 – 1225 × 525 mm
  • Volume flow rate range 23 – 2000 l/s or 83 – 7200 m³/h
  • Grille face made of aluminium with anodised finish
  • Diffuser-type front border, 28 mm wide
  • Concealed screw fixing


Optional equipment and accessories

  • Grille face in RAL CLASSIC colours
  • Installation subframe
  • Attachments for volume flow rate balancing and air direction control
  • Spring clip fixing

läs mer

layer

AF

Single ventilation grilles and horizontal run sections with special profiled blades

  • Nominal sizes 225 × 75 – 1225 × 425 mm and horizontal run sections
  • Volume flow rate range 10 – 1235 l/s or 36 – 4446 m³/h
  • Grille face made of aluminium with anodised finish
  • Front border suitable for floor installation without an installation subframe
  • Removable grille core with special spring clip fixing


Optional equipment and accessories

  • Grille face in RAL CLASSIC colours
  • Attachments for volume flow rate balancing and air direction control

läs mer

layer

TRS-K

Ventilation grille with droplet shaped blades

  • Nominal sizes 225 × 75 to 1225 × 325 mm
  • Volume flow rate range 11 – 1305 l/s or 40 – 4698 m³/h
  • Grille face made of galvanised sheet steel
  • Front border with countersunk holes, 27 mm wide


Optional equipment and accessories

  • Grille face in RAL CLASSIC colours
  • Installation subframe
  • Attachments for volume flow rate balancing and air direction control

läs mer

layer

X-GRILLE Basic

The new X-GRILLE Basic ventilation grilles with their gently sloped border combine function with an attractive design; they can be installed in walls, sills or rectangular ducts.

  • Nominal sizes 225 × 125 – 1225 × 525 mm
  • Volume flow rate range 19 – 2651 l/s or 68 – 9544 m³/h
  • Energy-efficient and acoustically optimised air discharge
  • Symmetric blade profile for two-way entry flow
  • Uniform look and easy adjustment due to concealed blade linkage
  • Gently sloped border construction, almost completely flush with the installation surface
  • Linear look, ideal for continuous horizontal runs
  • Use of existing rear assemblies
  • Easy replacement of existing grilles due to standard installation dimensions


Optional equipment and accessories

  • Installation subframe
  • Attachments for volume flow rate balancing and air direction control
  • Concealed screw fixing
  • Spring clip fixing

läs mer

layer

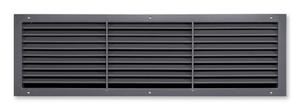

Type KS (Plastic Grilles)

Type KS grilles suitable for supply and extract use.
The grille has an injection moulded border with holes for site fixing with suitable screws.

Type KS-A with horizontal face blades which are individually adjustable.

läs mer

layer

TR

Ventilation grille with droplet shaped blades

  • Nominal sizes 225 × 125 – 1225 × 525 mm
  • Volume flow rate range 23 – 2000 l/s or 83 – 7200 m³/h
  • Grille face made of sheet steel, powder-coated
  • Front border with countersunk holes, 27 mm wide


Optional equipment and accessories

  • Grille face in RAL CLASSIC colours
  • Grille face made of galvanised sheet steel, without powder coating
  • Installation subframe
  • Installation subframe for fitting filter media
  • Attachments for volume flow rate balancing and air direction control
  • Concealed screw fixing

läs mer

layer

ASW

Hit and miss damper with airflow straighteners

  • Nominal sizes 225 × 75 to 1225 × 325 mm
  • Perimeter angle section frame

läs mer

layer

SL

Single ventilation grilles and horizontal run sections with droplet shaped blades

  • Nominal sizes 225 × 125 – 1225 × 525 mm and horizontal run sections
  • Volume flow rate range 23 – 2000 l/s or 83 – 7200 m³/h
  • Grille face made of sheet steel, powder-coated
  • Diffuser-type front border, 28 mm wide longitudinal section, 20 mm wide transverse section
  • Concealed screw fixing


Optional equipment and accessories

  • Grille face in RAL CLASSIC colours
  • Installation subframe
  • Installation subframe for fitting filter media
  • Attachments for volume flow rate balancing and air direction control

läs mer

Please select your disired product properties:
Ventilation grilles, made of aluminium, with individually adjustable, horizontal blades and diffuser-type front border Type ASL

ASL

Ventilation grilles, made of aluminium, with individually adjustable, horizontal blades and diffuser-type front border

läs mer

Ventilation grilles, made of aluminium, with fixed longitudinal blades, for floor installation – also for horizontal runs Type AF

AF

Ventilation grilles, made of aluminium, with fixed longitudinal blades, for floor installation – also for horizontal runs

läs mer

Ventilation grilles, made of galvanised sheet steel, with individually adjustable, vertical blades, for installation into rectangular ducts Type TRSK

TRS-K

Ventilation grilles, made of galvanised sheet steel, with individually adjustable, vertical blades, for installation into rectangular ducts

läs mer

Ventilation grilles with flat border construction – also for continuous horizontal runs Type X-GRILLE Basic

X-GRILLE Basic

Ventilation grilles with flat border construction – also for continuous horizontal runs

läs mer

Type KS

Type KS (Plastic Grilles)

läs mer

Ventilation grilles, made of sheet steel, with individually adjustable, horizontal blades Type TR

TR

Ventilation grilles, made of sheet steel, with individually adjustable, horizontal blades

läs mer

Hit and miss dampers, made of sheet steel, for installation into rectangular ducts Type ASW

ASW

Hit and miss dampers, made of sheet steel, for installation into rectangular ducts

läs mer

Ventilation grilles, made of sheet steel, with individually adjustable, horizontal blades and diffuser-type front border – also for horizontal runs Type SL

SL

Ventilation grilles, made of sheet steel, with individually adjustable, horizontal blades and diffuser-type front border – also for horizontal runs

läs mer

Ventilation grilles, made of aluminium, with individually adjustable, horizontal blades Type AT

AT

Ventilation grilles, made of aluminium, with individually adjustable, horizontal blades

läs mer

Ventilation grilles, made of sheet steel, with individually adjustable, vertical blades Type TRS

TRS

Ventilation grilles, made of sheet steel, with individually adjustable, vertical blades

läs mer

Ventilation grilles, made of galvanised sheet steel, with individually adjustable, vertical blades, for installation into circular ducts Type TRSR

TRS-R

Ventilation grilles, made of galvanised sheet steel, with individually adjustable, vertical blades, for installation into circular ducts

läs mer

Damper units, made of dip coated sheet steel, with air control blades, for installation into rectangular ducts Type DGW

DGW

Damper units, made of dip coated sheet steel, with air control blades, for installation into rectangular ducts

läs mer

Ventilation grilles, made of aluminium, with individually adjustable, vertical blades Type VAT

VAT

Ventilation grilles, made of aluminium, with individually adjustable, vertical blades

läs mer

Ventilation grilles, made of aluminium, with fixed horizontal blades – also for horizontal runs Type AH

AH

Ventilation grilles, made of aluminium, with fixed horizontal blades – also for horizontal runs

läs mer

Damper units, made of dip coated sheet steel, for installation into rectangular ducts Type AGW

AGW

Damper units, made of dip coated sheet steel, for installation into rectangular ducts

läs mer

Ventilation grilles, made of high-quality aluminium – also for continuous horizontal runs Type X-GRILLE Cover

X-GRILLE Cover

Ventilation grilles, made of high-quality aluminium – also for continuous horizontal runs

läs mer

Non-vision air transfer grilles, made of aluminium, with fixed horizontal blades Type AGS

AGS

Non-vision air transfer grilles, made of aluminium, with fixed horizontal blades

läs mer

Grille cores made of aluminium, with fixed horizontal blades Type EF

EF

Grille cores made of aluminium, with fixed horizontal blades

läs mer

Ball impact resistant ventilation grille made of aluminium, with fixed horizontal blades Type AWT

AWT

Ball impact resistant ventilation grille made of aluminium, with fixed horizontal blades

läs mer
